SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Material: 4 Channel Automatic Irrigation DIY

Model Number: Garden Flower Automatic Irrigation Device

Origin: Mainland China

Type: Watering Kits

semi_Choice: yes

Product features:

1. Easy to use, this automatic watering DIY kit is perfect for monitoring soil moisture as it will automatically water your plants and flowers

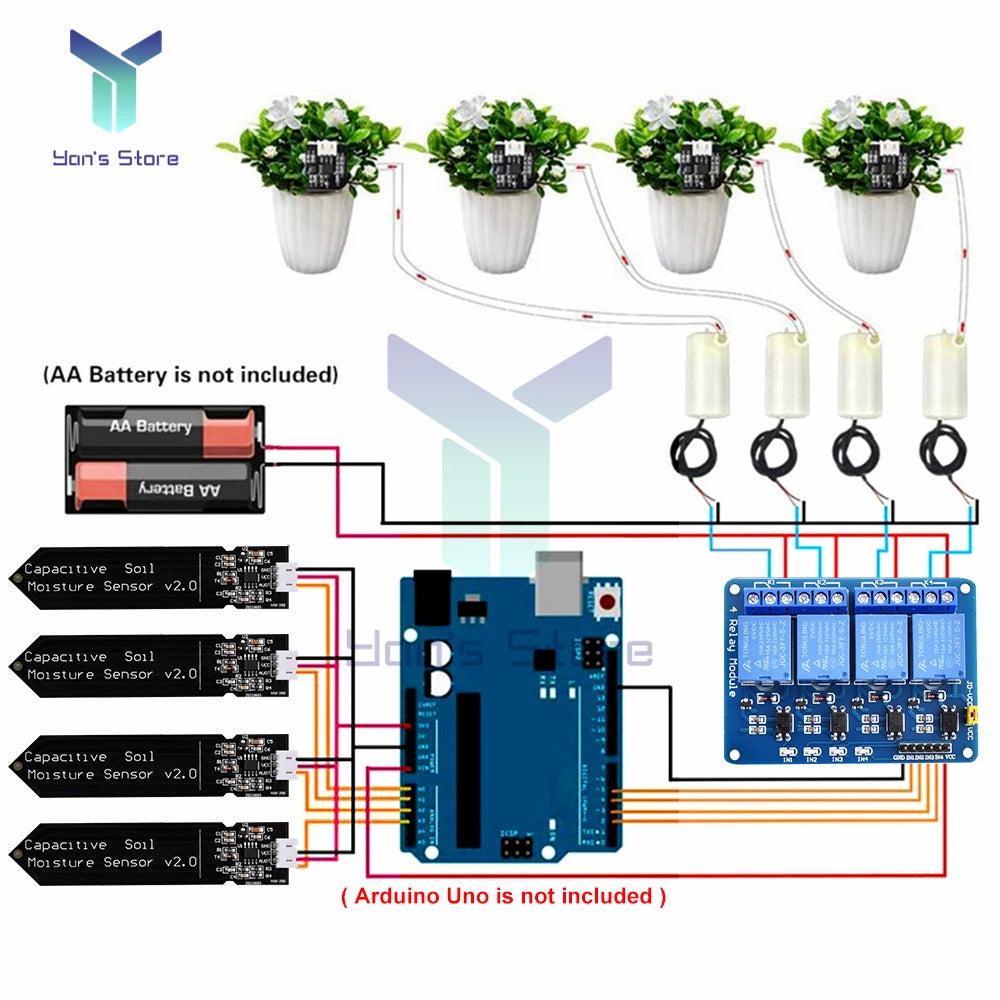

2. Automatic irrigation system, combining pumps, pipelines, soil humidity sensors, and 4-channel 5V relay modules into a plant irrigation system, including a kit for the entire Arduino DIY drip irrigation system

3. Capacitive sensor, placed in the soil around the plant, allows you to communicate with the plant through the sensor and motherboard. Do your plants need more water to replenish their water to see if they are lacking in water

4. Always take care of your plants, and the system can automatically water them. When your soil is too dry, the water pump will start and water will flow into pipes and containers. When you go on vacation, you don't have to worry about your plants

5. Perfect for personal DIY production

Specifications:

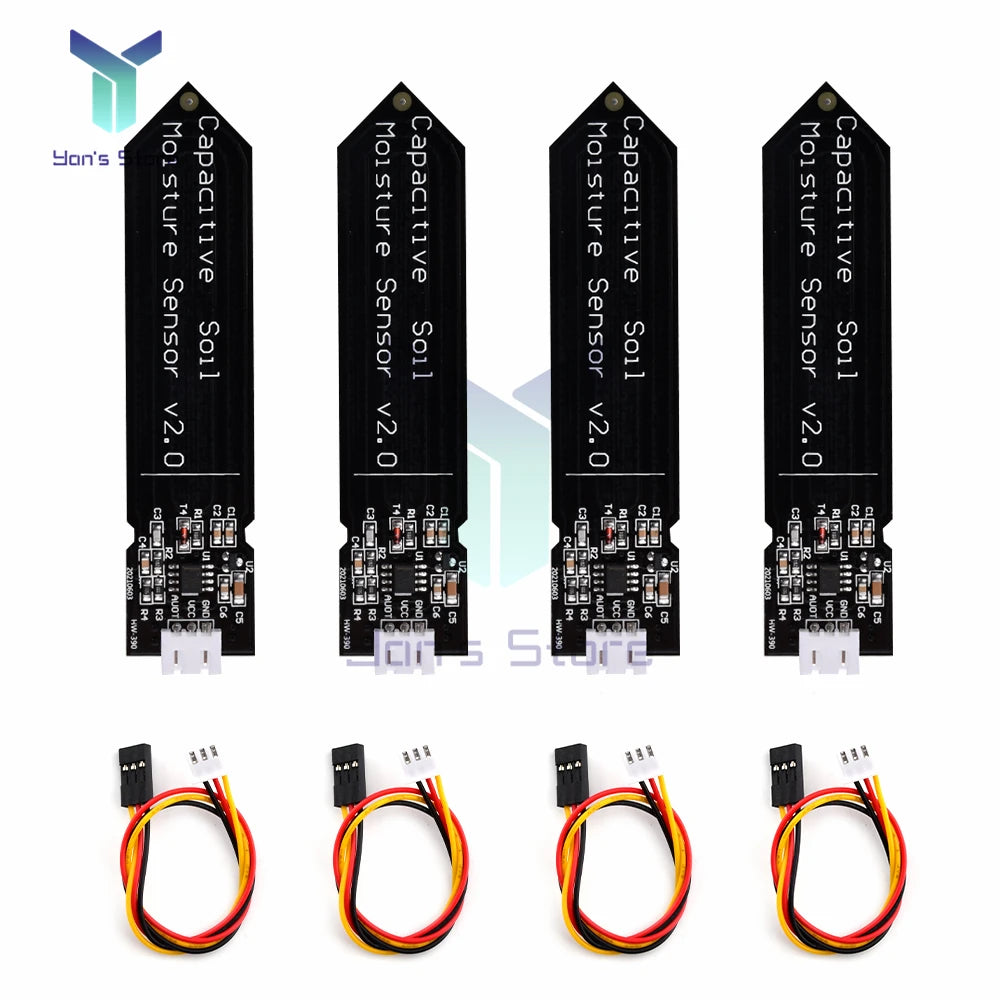

Capacitive soil moisture sensor:

Operating voltage: 3.3~5.5 VDC

Output voltage: 0~3.0 VDC

Interface: PH2.54-3 p

Pin: Analog signal output, GND, VCC

1 way 5V relay module:

VCC: Connect to 5V positive power supply

GND: Connects to 5V negative power supply

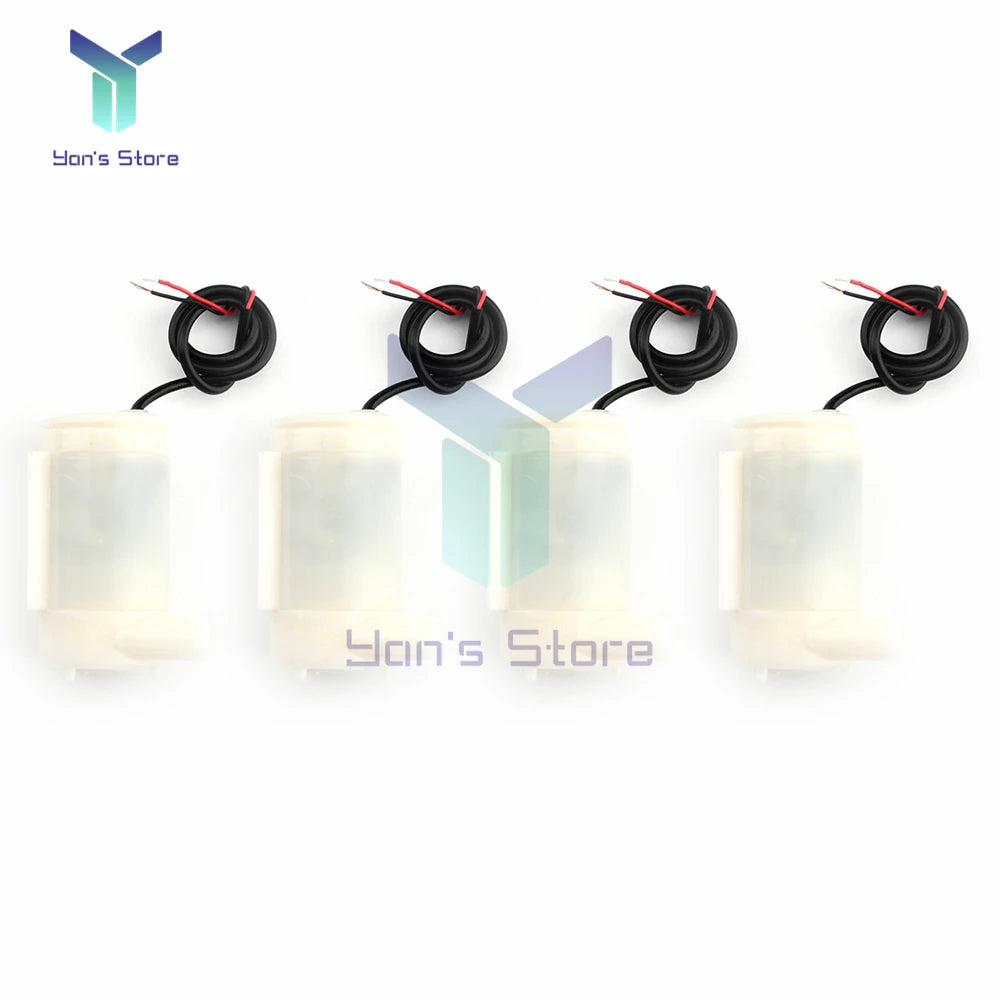

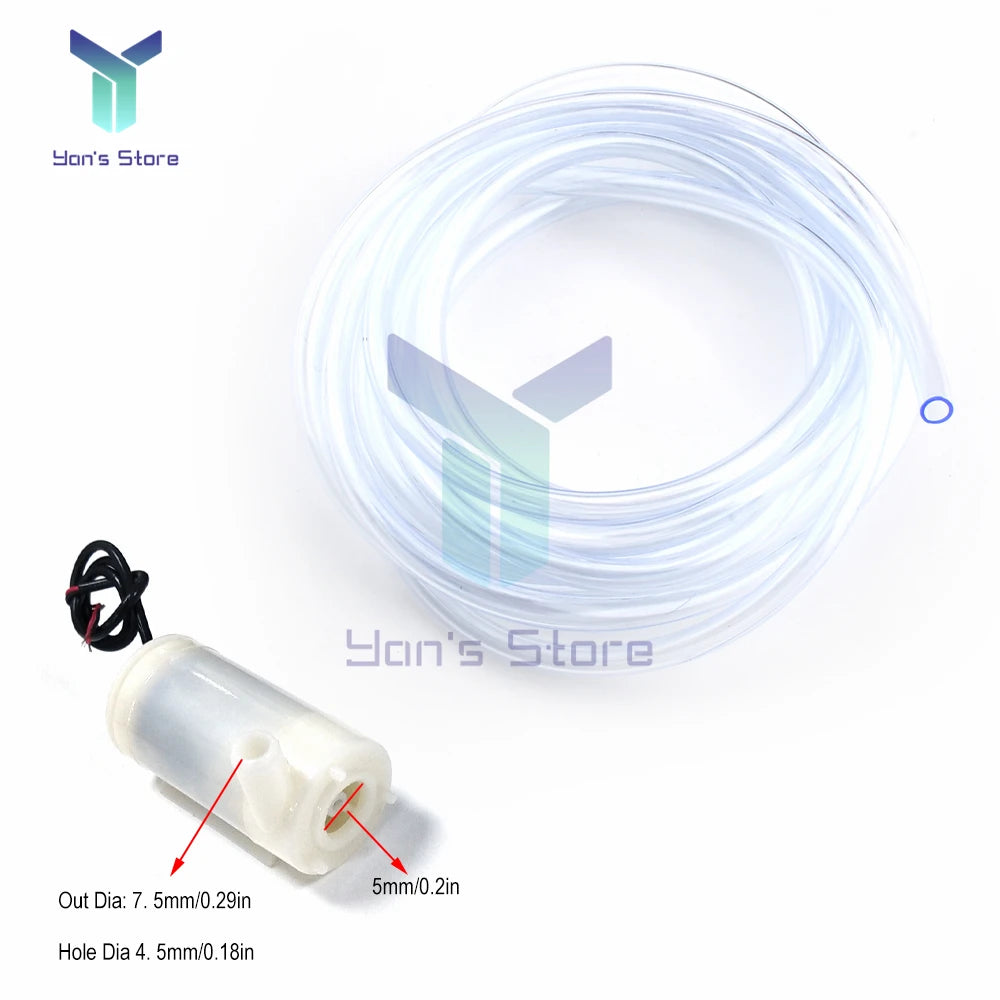

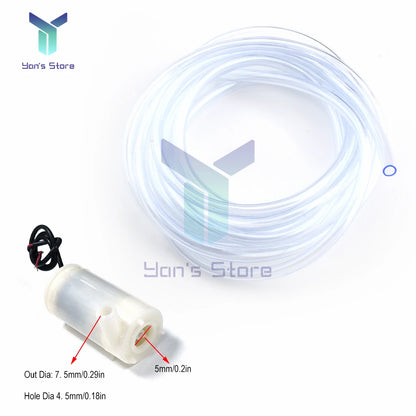

Mini water pump:

Dc voltage: DC3-5V

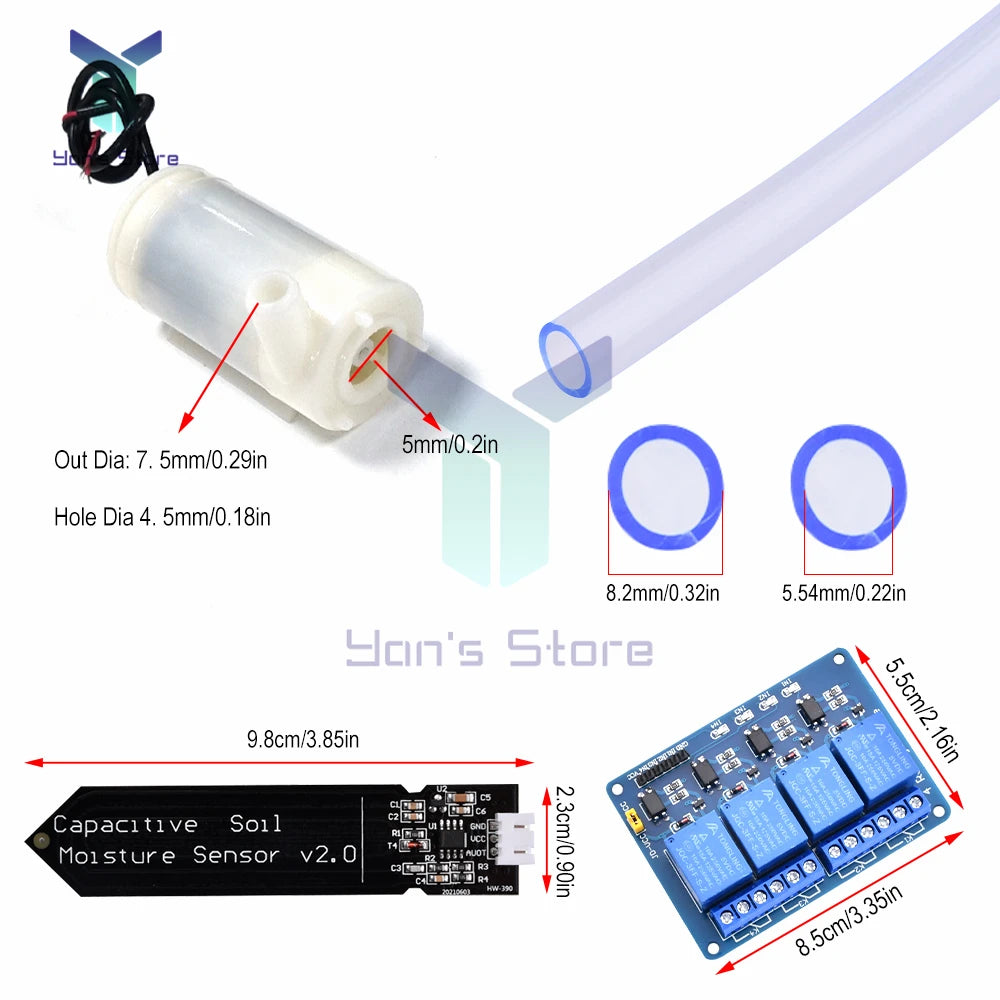

Outlet outer diameter: 0.29 inch /7.5mm

Inner diameter of outlet: 0.17 inches /4.5mm

Inlet diameter: 0.19 inches /5mm

Drive mode: brushless DC design, mesh drive

300 hours continuous working life

Vinyl tube:

Material: PVC

Length: 39.37 inches /400cm

Material: ABS.

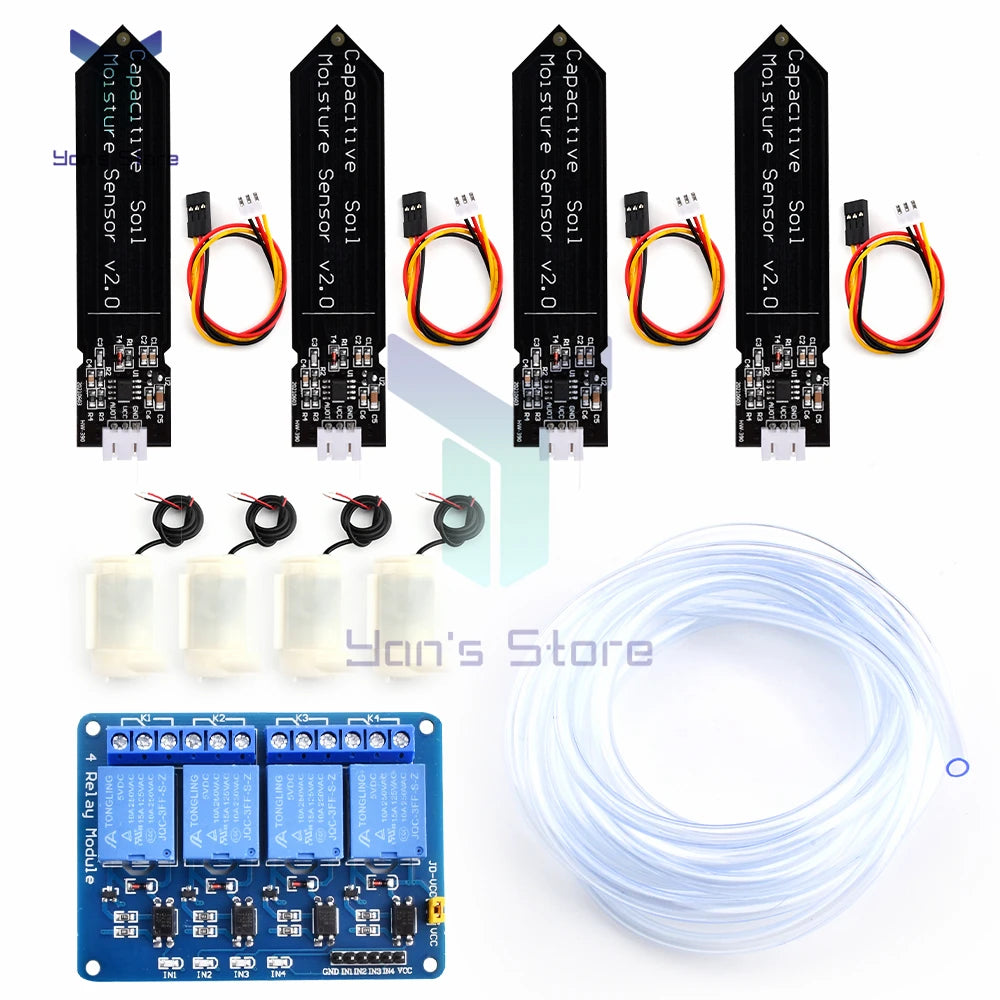

Shipping List:

Capacitive soil moisture sensor X4

4-way 5V relay module X1

Water pump X4

4 m pipe X1
